BUNDLE: PRO20, WASH & CURE, CARE PLUS PRO20

PRO 20 High-Performance Bundle (Printer + Wash + Cure)

The PRO 20 High-Performance Bundle delivers ultra-fast, high-precision dental 3D printing across 15+ applications. Powered by Force Feedback and RS Turbo, the Rapid Shape PRO 20 produces aligner models in just 7 minutes and Crown & Bridge models in 15 minutes, while maintaining exceptional accuracy. The RS Crystal Polish reservoir enables high-gloss splints without manual polishing, and 1-Year CARE Plus with a 90-Day Remote Coach ensures smooth onboarding and ongoing support.

Combined with the WASH and CURE, the system offers a fully automated workflow from printing to final curing. The WASH provides hands-free cleaning with pre-set resin parameters, while the CURE ensures optimal results with 360° light curing in a vacuum chamber. Seamless connectivity and RFID-supported processes guarantee consistent quality, easy delegation, and maximum efficiency.

1-Year CARE Plus is included with the purchase of a PRO 20 3D Printer, WASH and CURE and includes the following services:
- Access to 90-Day Remote Coach for onboarding and continued workflow training
- Ongoing expert remote support incl. workflow guides, troubleshooting tools and more
- Access to the RS Customer Portal allowing for remote device management
- Annual Remote Device Calibration via RS Support incl. Sensor-send-in for recalibration
- Hot Swap and Full Repair Coverage incl. parts, labor and freight minimizing downtime

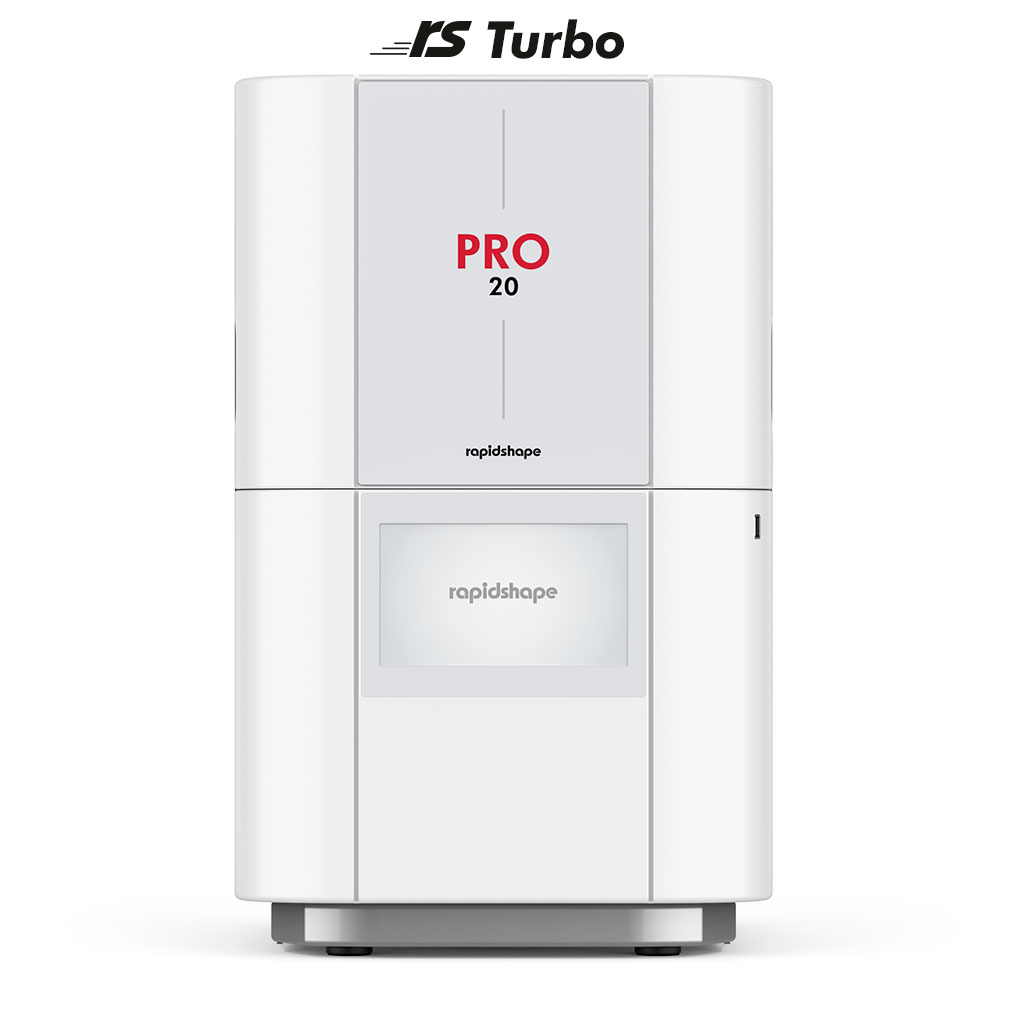

PRO 20 Technical Specifications:
- DLP Technology
- Build Volume (LxWxH): 133x75x115mm / 5.2 x 3 x 4.5 inches
- Up to 3 C&B Models flat

• Wavelength: 385nm
• XY Accuracy: +/- 34 E4
• Available Layer Thickness: 50-150 µm
• Chamber heating
• Durable glass reservoir
• Connectivity: WiFi, LAN, USB
• Device Dimensions (WxDxH): 334 x 357 x 544 mm/ 13 x 14 x 21.4 inches
• Device Weight: 26kg / 57 lbs

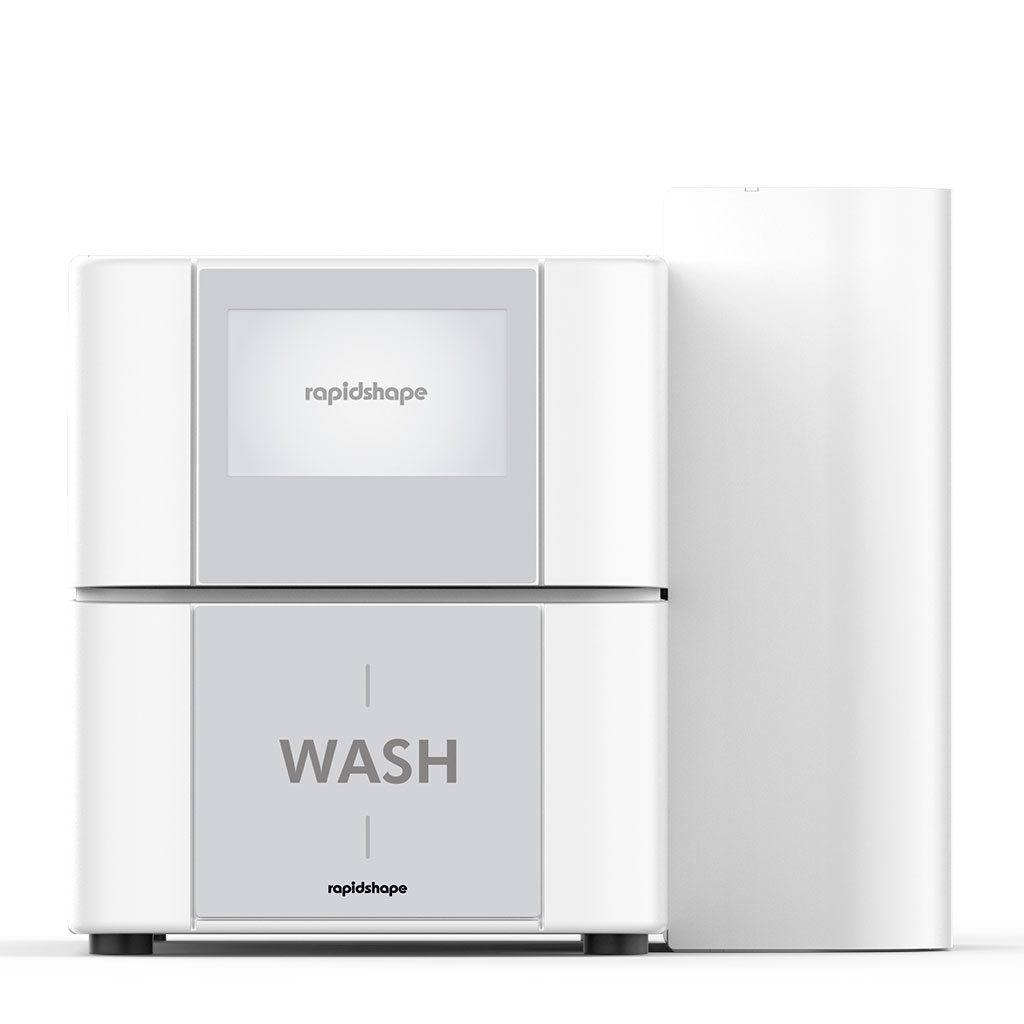

WASH Technical Specifications:
- Cleaning Chamber Volume: 119 x 160 x 99mm
Fits up to 6-8 dental models
- Wash Cycle Time: 6-8 minutes
- Cleaning Solution: Isopropylalcohol or Ethanol
- Connectivity: WiFi, Ethernet
- WASH Dimensions: 243 x 431 x 268 mm /9.6 x 17 x 10.5 inches
- WASH Weight: 14,5kg /32lbs.

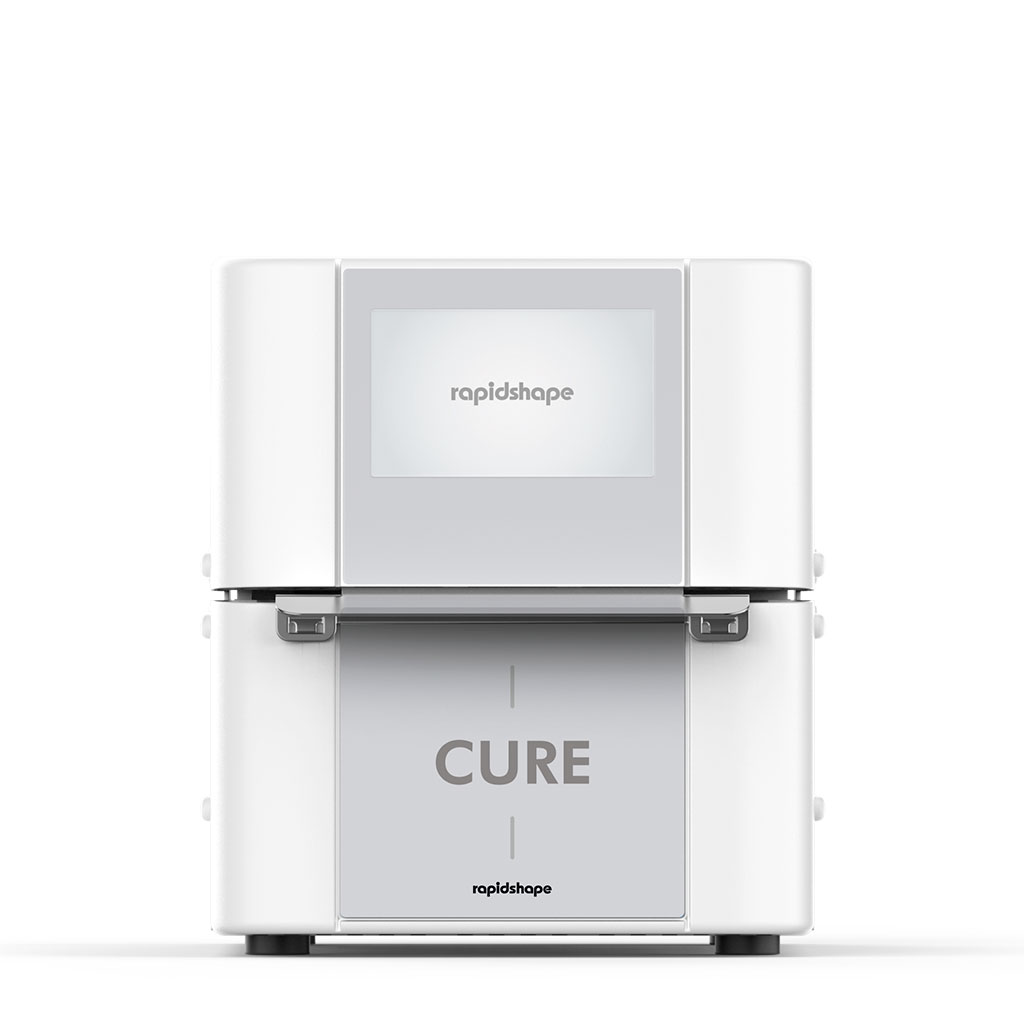

CURE Technical Specifications:
- Curing Chamber Volume: 179 x 117 x 102mm
fits up to 7 dental models
- Curing cycle duration up to 10 minutes, depending on resin
- Connectivity: WiFi, Ethernet
- CURE Dimensions: 464 x 342 x 295 mm / 18.2 x 13.5 x 11.6 inches
- CURE Weight: 15kg / 33lbs.
